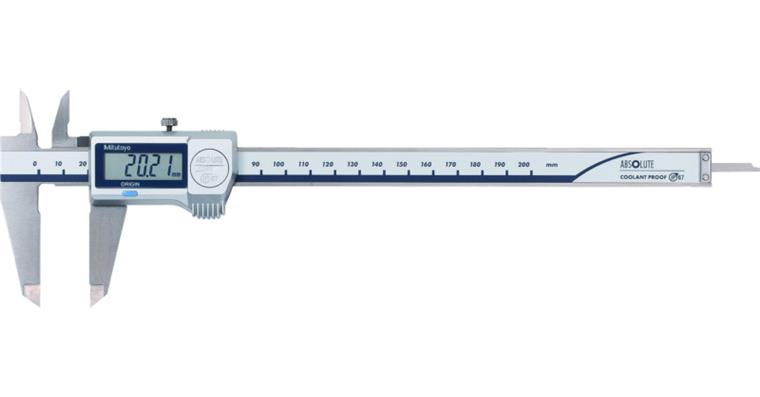

Digital ABS callipers CoolantProof 0-200 mm with carbide surfaces
Item no: 1031015 502 ![](/images/icon_copy.png)
Online price:
Catalogue price:
You save:
Will be ordered for you
Min. order quantity: 1
Description
ApplicationFor measuring external, internal, step and depth dimensions.
Execution- ABSOLUTE system for reliable measurement
- High-contrast digital display
- Locking screw at the top
- Carbide-tipped measuring surfaces for internal and external measurements
- Functions: ORIGIN (ABS zero point), auto switch-off, low voltage alarm
Advantage- Very high resistance to water and dust (degree of protection IP67). Suitable for use in machining situations that involve coolants and lubricants
- Dustproof in accordance with DIN EN 60529. Can survive temporary, complete immersion in water without damage
- No re-calibration of reference point needed after powering on (ABS scale)
Delivery1x box
1x battery
NotesFor test gauge, see art. no. 1032060 201.
For connection cables, see art. no. 1035200 601, 602, 608.
For replacement batteries, see art. no. 1039900 101.
Technical data
Brand: MITUTOYO
Min./max. length measuring range: 0-200 mm
Digit increment: 0,01 mm
Depth gauge rod: Flat
Length of jaw: 50 mm
Data transmission type: Cable | Bluetooth | Wireless
Error limit: 0,04 mm
IP protection class: IP 67
Interface: Digimatic | USB 2.0 type A | Bluetooth | Integrated Wireless
Other standard: Company standard
Calibration Group: A
Length of cross tips: 16,5 mm
Digit height: 9 mm
Type of locating: With locking screw
More details
Manufacturer part no.:
500-728-20
EAN no.: 4946368694177
Product Datasheet
