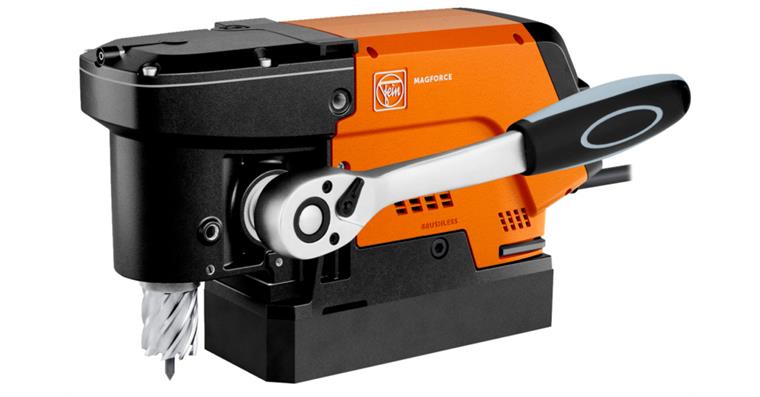

FEIN - KBC 36 MAGFORCE magnetic core drill

Execution

Extremely small and lightweight for working in confined and hard-to-reach areas - even vertically and overhead - thanks to a construction height of 169 mm, a construction length of 290 mm and a weight of 8.5 kg.
Extremely wear-resistant and durable machine design with zero-play sleeve feed for dimensionally accurate drilling results in heavy-duty applications in industry and trade.
Very powerful and maintenance-free brushless 1,200 W high-performance motor with high speed stability for long-term, fast work progress as well as clockwise/anti-clockwise rotation and electronic speed adjustment for all drilling applications such as core drilling, spiral drilling, screw tapping and countersinking.
High-mounted gearbox for optimal view of the borehole position.
Large installation space below the drilling spindle with stroke range of 46 mm.
Space-saving, double-sided operation by means of ratchet tool.
Drive shaft combines a 1/2 inch square and 8 mm hexagon socket.
Simple and intuitive operating controls within the user's field of view.
Convenient magnetic retention force indicator.
The tilt sensor stops the drill motor if the power tool slips or tilts.

Delivery
1 1/2 inch ratchet tool, 1 1/2 inch socket wrench extension, 1 coolant pump, 1 lashing strap, 1 swarf hook, 1 82 mm centring pin, 1 protective cover, 1 additional handle, 1 5 mm hex socket wrench, 1 hex socket wrench with 5 mm T-handle, 1 plastic tool case (L-BOXX 238)

Brand: FEIN
Type: KBC 36 MAGFORCE
Tool holding device: 3/4 in Weldon
Max. idle speed: 660 rpm
Max. rotation speed at nominal load: 610 rpm
Min. rotation speed at nominal load: 130 rpm
Min./max. rotation speed at nominal load: 130-610 U/min(rpm)
Max. thread-cutting performance: M12
Power input: 1200 W
Power output: 680 W
Baseplate width: 80 mm
Baseplate length: 175 mm
Max. working stroke: 46 mm
Adherence strength: 10000 N
Weight: 8,5 kg
Cable length: 3 m
Included in delivery: 1 1/2 in ratchet tool, 1 1/2 in socket extension, 1 coolant pump, 1 lashing strap, 1 swarf hook, 1 82 mm centring pin, 1 protective cover, 1 additional handle, 1 5 mm hex socket wrench, 1 hex key with T-handle 5 mm, 1 plastic tool case (L-BOXX 238)
