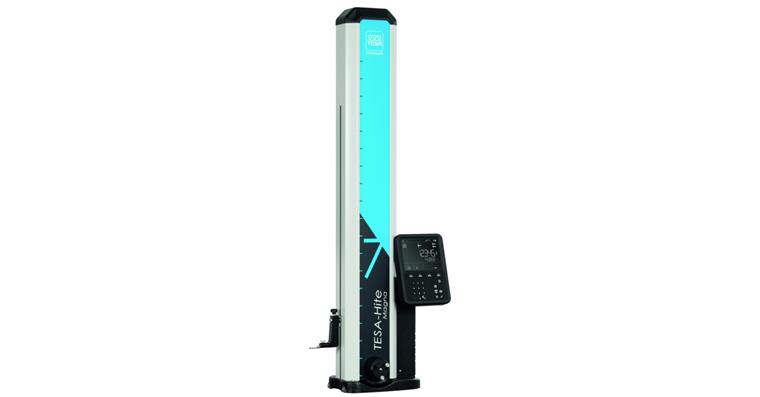

TESA TECHNOLOGY - Digital height measuring device TESA-HITE MAGNA 700

Application
For measuring external, internal, height, depth and distance measurements, parallelism deviations and inside and outside diameter using the QuickCenter dynamic function.

Execution

Manual measuring slide movement using handwheel
Large control panel 92x121 mm with keypad and colour display
Control panel IP65 splash-proof
Integrated Li-ion battery 12.8 V 3 Ah, rechargeable
Includes SCS calibration certificate
Measurement system IP55 protection against contact, dust and water
Basis auf Gusseisen

Advantage

Contextual help provides specific information and supports the user in performing measuring tasks
Clear measurement result display provides optimal readability (digit size 10x21mm)
QuickCenter dynamic function for efficiently determining reversal points
Flexible data management, allowing for easy data export
Best possible workshop compatibility thanks to IP55-protected measurement system

Delivery
1x height measuring instrument incl. control panel
1x standard test indicator shank
1x standard indicator contact point with carbide ball dia. 5 mm
1x reference piece
Power supply and cable
SCS certificate
Declaration of conformity
Quick start guide
Operating instructions on USB stick

Notes
For connection cable, see art. no. 1035200 315, 316.
For wireless data transmission, see art. no. 1035200 501-503.

Brand: TESA TECHNOLOGY
Calibration Group: M
Type: Tesa-Hite Magna 700
Length measuring range: 715 mm
Min./max. application area with standard gauge slide carrier: 0-870 mm
Digit increment (can be pre-selected): 0.001 mm | 0.005 mm | 0.01 mm
Height gauge error limit: < 8 µm
Repeat accuracy of drill hole: 3 µm
Repetition accuracy, level: 5 µm
Min./max. measurement force: 1.0-2.0 N
Max. battery operating time: 60 h
Data transmission type: Bluetooth | Cable
With air cushion equipment: No
Weight: 18 kg
Max. application area with standard gauge slide carrier: 870 mm
Max. measurement force: 2,0 N
Measurement force: 1,5 N
Min. application area with standard gauge slide carrier: 0 mm
Min. measuring force: 1,0 N

Digital height measuring device TESA-HITE MAGNA 700

Digital height measuring device TESA-HITE MAGNA 700

Description

Technical data

More details

Versions
