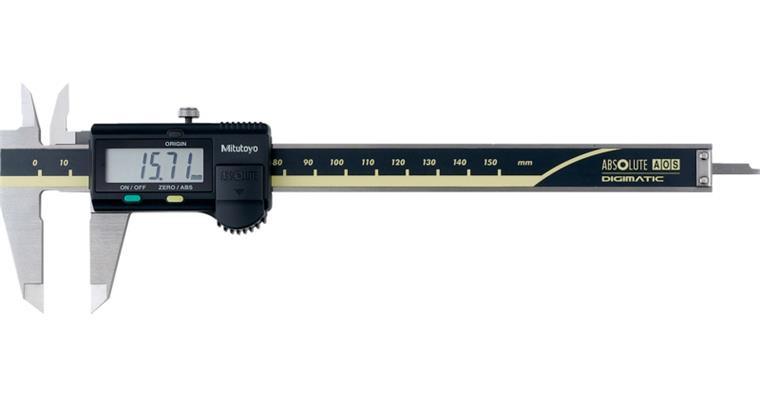

Digital pocket vernier callipers 0-150 mm with data output
Item no: 1031015 104
Online price:
Catalogue price:
You save:
Still in stock: 6
Min. order quantity: 1
Description
ApplicationFor measuring external, internal, step and depth dimensions.
Execution- AOS (Advanced Onsite Sensor) magnetic-inductive scale, which can also be used with the IP67 callipers.
- High-contrast digital display
- Locking screw at the top
- Features: ORIGIN (ABS zero point), ON/OFF, ABS/INC (INC ZERO), low voltage alarm
Advantage- Due to the magnetic-inductive ABS scale used, contamination of the scale (by dust, oil, water etc.) has no influence on the measurement.
- ABS (ABSOLUTE) scale does not require any further adjustment of the zero position after powering on and boasts unlimited response speed
Delivery1x box
1x battery
NotesFor test gauge, see art. no. 1032060 201.
For connection cables, see art. no. 1035200 607.
For replacement batteries, see art. no. 1039900 101.
Technical data
Brand: MITUTOYO
Min./max. length measuring range: 0-150 mm
Digit increment: 0,01 mm
Depth gauge rod: Flat
Length of jaw: 40 mm
Data transmission type: Cable | Bluetooth | Wireless
Error limit: 0,04 mm
Interface: Digimatic | USB 2.0 type A | Bluetooth | Integrated Wireless
Other standard: Company standard
Calibration Group: A
Length of cross tips: 16,5 mm
Digit height: 9 mm
Type of locating: With locking screw
More details
Manufacturer part no.:
500-161-30
EAN no.: 4946368667928
Product Datasheet
